Stone Form and PVC Artificial marble/stone board Stone pvc marble extrusion machine
The PVC stone plastic marble slab production line is an automated production equipment used to manufacture PVC stone plastic marble slabs. PVC stone plastic marble slab is a type of marble based on polyvinyl chloride (PVC), which simulates the texture and appearance of marble through mold and surface printing technology. It has characteristics such as wear resistance, waterproof, and easy to clean. The following is a basic introduction to the general PVC stone plastic marble slab production line:
1. Raw material preparation: The first step of the production line is to prepare the raw materials required for the manufacturing of PVC stone plastic marble slabs, mainly including polyvinyl chloride (PVC) particles, fillers, stabilizers, pigments, etc. These raw materials are usually mixed in a certain proportion through a batching system.

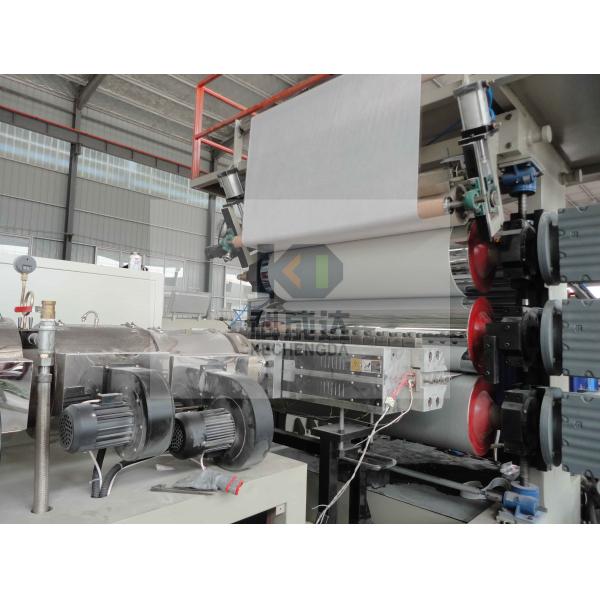

2. Mixing and extrusion: The mixing process sends raw materials into the mixer for thorough mixing, ensuring uniform distribution of various additives and particles. Then, the mixed material is fed into the extruder, and through the process of heating and extrusion, the material is extruded into a marble board shape.
3. Cooling and embossing: The extruded PVC stone plastic marble slab enters the cooling device through a conveyor belt or roller to quickly cool and solidify. Then, entering the embossing machine, the texture and pattern are pressed onto the surface of the board through the action of the mold and embossing roller to simulate the appearance of marble.
| Extruder model | Motor power | Auxillaiy equipment power | Vacuum pump power | Haul-off speed | Cutting machine power | length/Width |
| SJSZ51 | 15KW | 180-240 | 5.5KW | 1.5KW*2 | 1.5KW | 16*2.5M |
| SJSZ55 | 22KW | 180-300 | 5.5KW | 1.5KW*2 | 1.5KW | 17*2.5M |
| SJSZ65 | 37KW | 180-400 | 5.5KW | 1.5KW*2 | 1.5KW | 20*2.5M |
| SJSZ80 | 55KW | 180-600 | 7.5KW | 4KW*2 | 2.2KW | 21*2.5M |
It should be noted that different PVC stone plastic marble slab production lines may have some differences, and the specific production line configuration and process flow may vary. In addition, some production lines may integrate automated control systems to improve production efficiency and product quality.
